    Tax Top Display Outdoor LCD Digital Signage Windows System 3G Split Screen

    Ask Lasest Price
    Brand Name : Doxi
    Model Number : DWT28-1
    Certification : CE/Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 1200 pcs per month
    Delivery Time : 10-15 working days after receipt of payment
    • Product Details
    • Company Profile

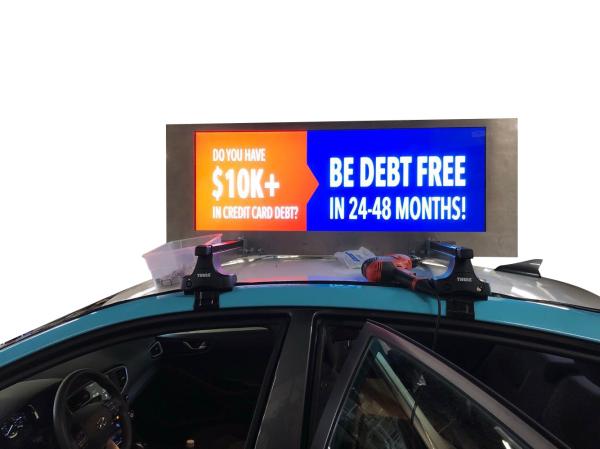

    Tax Top Display Outdoor LCD Digital Signage Windows System 3G Split Screen

    Outdoor Digital Signage 28 inch Windows System Tax top display 3G split screen


    Sizes could be tailor-made.


    Scren size28inch
    Active Display Area698.4*131mm
    Aspect Ratio16:3
    Visual Angle178/178
    LCD panelSamsung, LG, AUO A Level
    Brightness600cd/m2
    Contract Ratio5000:1
    Resolution Ratio1920*360
    Color Components16.7M
    Surface treatmentAnti-glare 3H
    Response Time10ms
    Power Consumption20W
    Power SupplyInput:DC 8-36V, with adaptor
    MaterialMetal
    Color of Shellwhite or black
    Life of Panel60000Hours
    Bare dimension(estimate)740*180*50mm
    Carton packing size(estimate)760*200*70mm, N.W./G.W.: 4/5kg
    OSD LanguageEnglish, Chinese, French, German, Italian, Spanish,Arabic
    Working Temperature0°——50°
    Storage Temperature-20°——60°
    AccessoryPower Cables, English Manual, IR Remote Controller
    Mainboard Configuration
    CPUA20 Dual Core 1.2GHZ
    RAMDDR2 1G
    Memory8G
    OSAndroid 4.2
    Internet connectionWIFI, LAN
    Interface2*USB, 1*HDMI,1*SD, 1*LAN Port

    Advantage


    Sun Readable
    High brightness, high definition full HD lcd panel.
    Waterproof
    Unique patented sealing technology.
    IP65 protection grade enclosure dust can not enter into the display under the 20 mbar pression, harmless when water jetting in ever direction.


    Extreme Temperature
    Intelligent air conditioner cooling system integrated cooling and heating.
    housing enclosure made of non-oxidizing material zinc coted steel.


    Vandal Proof

    Strong steel housing protects inner system from vandalism.


    SizeBrightnessResolutionAspect ratioContrast ratioPowerViewing angleDisplaying area(mm)Panel overall size(mm)
    3.9150nits480*14016:4.5500:170/70/50/7095.04*27.75105.5*40.2*2.95
    5.7200nits800*31016:05600:170/75/60/65137.52*50154.8*62*5
    7.36700nits1280*40016:051000:189/89/89/89178.56*55.8192*70.6*5
    8700nits800*20216:4.1500:12.6W70/70/50/70198*46.0764211*61.6*3.8
    16.4700nits1366*23016:2.71000:114W85/85/80/80409.7*69431.4*92.8*14.5
    16.8800nits1366*37816:4.51000:114W85/85/80/80409.8*113.4430.37*137.6*11
    19.1700nits1920*34016:2.81000:119W85/85/80/80476.64*84.405495.6*108.5*10.6
    19.2700nits1920*38416:3.21000:119W85/85/80/80476.6*100.4495.6*121.3*10.6
    19.7700nits1920*62416:5.21000:119W85/85/80/80479.6*159.5495.5*180*10.6
    21.9300nits1920*72016:61000:115W89/89/89/89525.22*199.48544.8*222.76*9
    24.6700nits1920*57816:4.81200:119W85/85/80/80597.9*180624*208.8*17.6
    28600nits1920*36016:35000:121W89/89/89/89698.4*131729.3*167.3*19.4
    28.8550nits1366*38416:41200:119W89/89/89/89697.68*196.12739*304*29

    · IP65 outdoor enclosures, waterproof, dust-proof, anti-humidity, anti-corrosive, anti-rust·3.High brightness HD LCD Panel, brightness achieve above 1500nits, sun readable, screen sizes can be from 18.5 inch to 85 inch.

    ·6mm AR Bonding TM-special glass, high perspective and anti-ultraviolet.
    · Intelligent brightness adjustment system, built-in ambient light sensor, auto dimming, maximum energy saving.Reducing light pollution.
    · Intelligent temperature control system, intelligent air-conditioner, smart air ventilation, for dry and constant temperature adjustment, ambient temperature from -40℃ to +55℃.
    · Optionally integrating touch function, WiFi, Networks, Information issue System, remote monitoring system.
